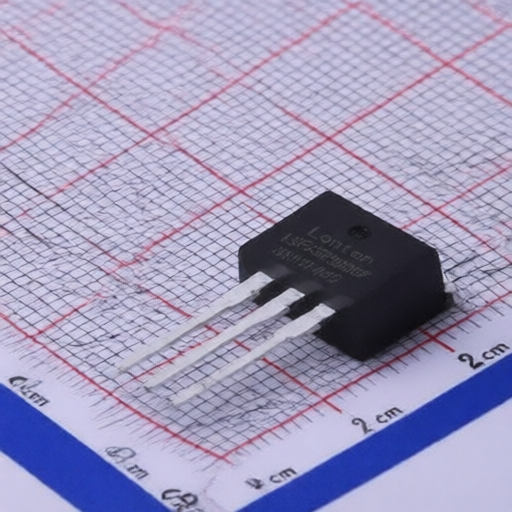

LONTEN LSF65R380GF
Manufacturer:
LONTEN
Asian Brands
Mfr. Part #:
LSF65R380GF
Package:
TO-262-3
Customer #:
Key Attributes:
MOSFET N-CH 650V 11A TO-262-3
Description:
N-Channel 650V 11A 125W Through Hole TO-262-3
Datasheet:
LONTEN LSF65R380GF
Products Specifications
Manufacturer:
Package:
TO-262-3
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
11A
Operating Temperature -:
-55℃~+150℃
RDS(on):
380mΩ@10V,5.5A
Gate Threshold Voltage (Vgs(th)):
4.5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
1.8pF
Number:
1 N-channel
Output Capacitance(Coss):
39pF
Input Capacitance(Ciss):
1.068nF
Pd - Power Dissipation:
125W
Gate Charge(Qg):
22.8nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
