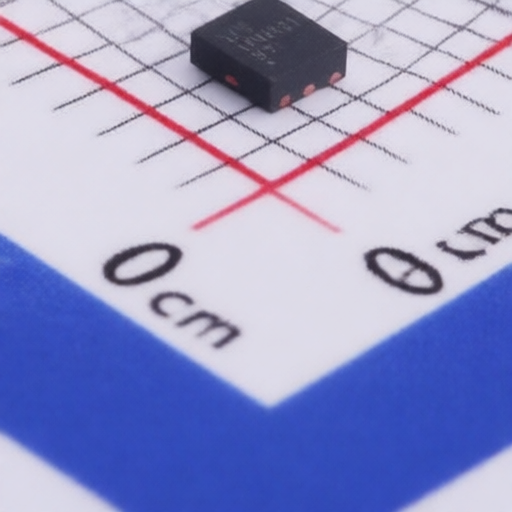

LOWPOWER LPM9021QVF
Manufacturer:
LOWPOWER
Asian Brands
Mfr. Part #:
LPM9021QVF
Package:
DFN2x2-6L
Customer #:
Key Attributes:
MOSFET P-CH 12V 6.5A DFN2x2-6L
Description:
P-Channel 12V 6.5A 1.9W Surface Mount DFN2x2-6L
Datasheet:
LOWPOWER LPM9021QVF
Products Specifications
Manufacturer:
Package:
DFN2x2-6L
Drain to Source Voltage:
12V
Current - Continuous Drain(Id):
6.5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
23mΩ@4.5V,5.5A
Gate Threshold Voltage (Vgs(th)):
520mV
Reverse Transfer Capacitance (Crss@Vds):
195pF@10V
Number:
1 P-Channel
Input Capacitance(Ciss):
1.97nF
Pd - Power Dissipation:
1.9W
Gate Charge(Qg):
21nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LOWPOWER
355 Products
LOWPOWER, a world-leading analog chip design company, has design centers in the United States, Taiwan, China, and mainland China, with sales offices worldwide. We are dedicated to providing comprehensive power management solutions and timely technical support to our customers. Our primary product lines include power management chips.
