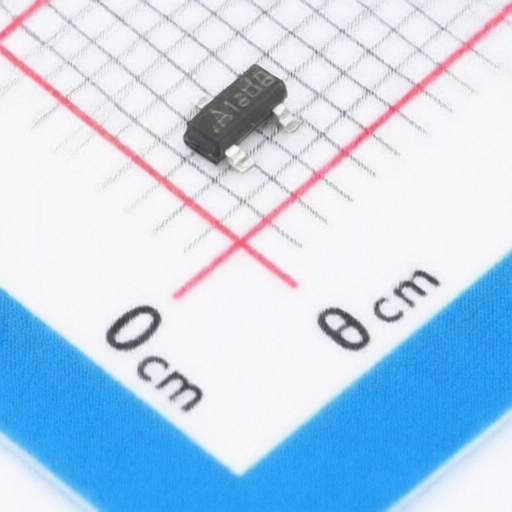

LOWPOWER LPM2301B3F
Manufacturer:
LOWPOWER
Asian Brands
Mfr. Part #:
LPM2301B3F
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 2A SOT-23
Description:
P-Channel 20V 2A 1.25W Surface Mount SOT-23
Datasheet:
LOWPOWER LPM2301B3F
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
130mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
80pF
Number:
1 P-Channel
Output Capacitance(Coss):
220pF
Input Capacitance(Ciss):
400pF
Pd - Power Dissipation:
1.25W
Gate Charge(Qg):
7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
