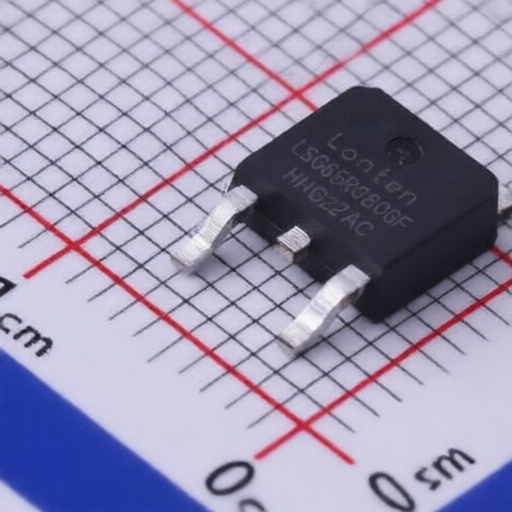

LONTEN LSG65R380GF
Manufacturer:
LONTEN
Asian Brands
Mfr. Part #:
LSG65R380GF
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 650V 11A TO-252
Description:
N-Channel 650V 11A Surface Mount TO-252
Datasheet:
LONTEN LSG65R380GF
Products Specifications
Manufacturer:
Package:
TO-252
Configuration:
-
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
11A
Operating Temperature -:
-55℃~+150℃
RDS(on):
380mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4.5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
1.8pF@100V
Number:
1 N-channel
Output Capacitance(Coss):
39pF
Input Capacitance(Ciss):
1.068nF@100V
Pd - Power Dissipation:
-
Gate Charge(Qg):
22.8nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
