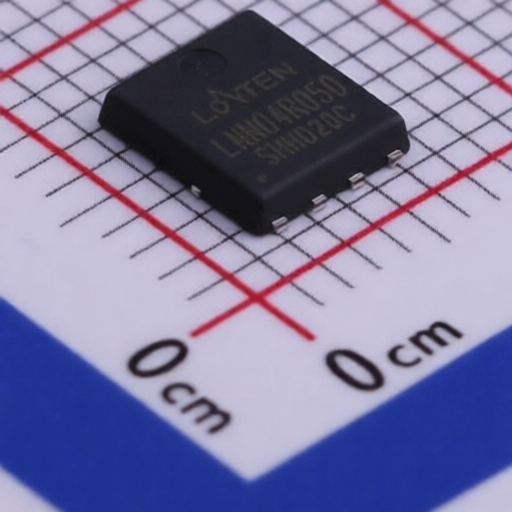

LONTEN LNN04R050
Manufacturer:
LONTEN
Asian Brands
Mfr. Part #:
LNN04R050
Package:
DFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 40V 80A DFN5x6-8
Description:
N-Channel 40V 80A 54W Surface Mount DFN5x6-8
Datasheet:
LONTEN LNN04R050
Products Specifications
Manufacturer:
Package:
DFN5x6-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
80A
Operating Temperature -:
-55℃~+150℃
RDS(on):
5mΩ@10V,20A
Gate Threshold Voltage (Vgs(th)):
2V
Reverse Transfer Capacitance (Crss@Vds):
338.5pF@20V
Number:
1 N-channel
Input Capacitance(Ciss):
23.6pF@20V
Pd - Power Dissipation:
54W
Gate Charge(Qg):
66.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
