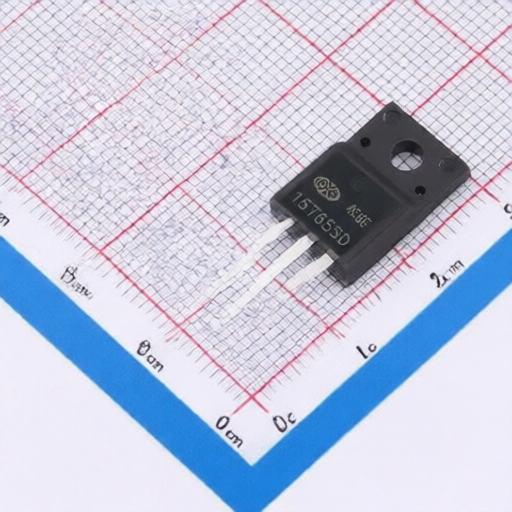

JUXING 15T65SD
Manufacturer:
JUXING
Asian Brands
Mfr. Part #:
15T65SD
Package:
ITO-220AB
Customer #:
Key Attributes:
IGBT 650V 15A ITO-220AB
Description:
IGBT 650V 15A 37.5W Through Hole ITO-220AB
Datasheet:
JUXING 15T65SD
Products Specifications
Manufacturer:
Package:
ITO-220AB
Pd - Power Dissipation:
37.5W
Td(off):
60ns
Td(on):
125ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
-
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.5V@300uA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
21.1nC
Reverse Recovery Time(trr):
186ns
Switching Energy(Eoff):
210uJ
Turn-On Energy (Eon):
330uJ
Input Capacitance(Cies):
812pF@25V
Pulsed Current- Forward(Ifm):
-
Output Capacitance(Coes):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JUXING
1016 Products
Guangdong Juxing Electronic Technology Co., Ltd.
(hereinafter referred to as "JUXING") was established in 2003. It is a specialized and innovative enterprise engaged in the research and development, production, sales and technical services of semiconductor discrete devices. The company's main products include various series of diode products in various packaging forms such as ordinary rectification, fast recovery, high efficiency, Schottky, switch, voltage regulator, etc. At the same time, it provides customers with semiconductor discrete devices such as triodes and MOS tubes. All products comply with EU standards (ROHS) and can provide customers with professional services such as tailor-made and R&D design. Products are widely used in lighting, computers, automotive electronics, power supplies, consumer electronics and other fields. JUXING has introduced a full set of advanced equipment and scientific management systems, and the annual production and sales of diodes and bridge stacks
