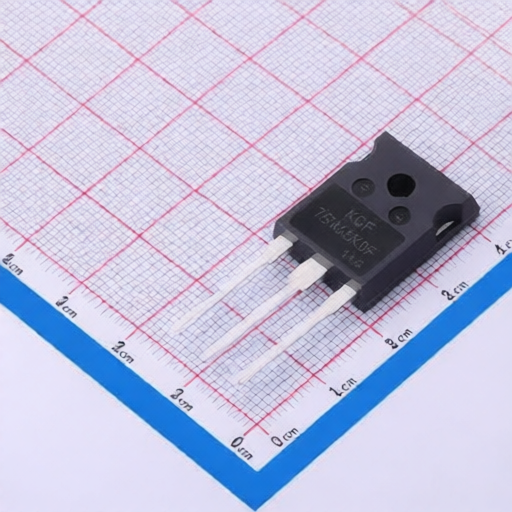

KEC KGF75N65KDF-U/H
Manufacturer:
KEC
Mfr. Part #:
KGF75N65KDF-U/H
Package:
TO-247
Customer #:
Key Attributes:
Field Stop Trench IGBTs
Description:
650V FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
KEC KGF75N65KDF-U/H
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
177ns
Td(on):
63ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
41pF
Input Capacitance(Cies):
3.555nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.2V@1mA
Gate Charge(Qg):
128nC@15V
Pulsed Current- Forward(Ifm):
225A
Output Capacitance(Coes):
198pF
Reverse Recovery Time(trr):
122ns
Switching Energy(Eoff):
2.1mJ
Turn-On Energy (Eon):
3.6mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KEC
388 Products
Established in 1969, KEC corporation is a global leading semiconductor expert company with the main product of non-memory semiconductor (Transistor, Diode, IC, MOS, etc). The management philosophy of KEC is creating electronic technologies. KEC strives to providing the finest products as well as help improve the quality of life for all.
