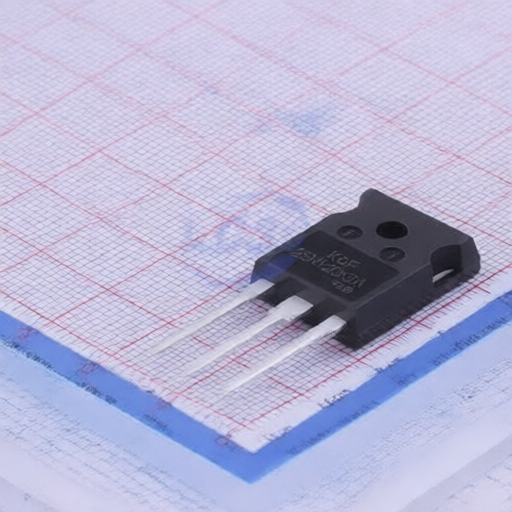

KEC KGF25N120KDA
Manufacturer:
KEC
Mfr. Part #:
KGF25N120KDA
Package:
TO-247-3
Customer #:
Key Attributes:
Field Stop Trench IGBTs
Description:
227W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
KEC KGF25N120KDA
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
180ns
Pd - Power Dissipation:
227W
Td(on):
40ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
70pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@25mA
Gate Charge(Qg):
160nC@15V
Pulsed Current- Forward(Ifm):
75A
Output Capacitance(Coes):
115pF
Reverse Recovery Time(trr):
140ns
Switching Energy(Eoff):
900uJ
Turn-On Energy (Eon):
1.85mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
