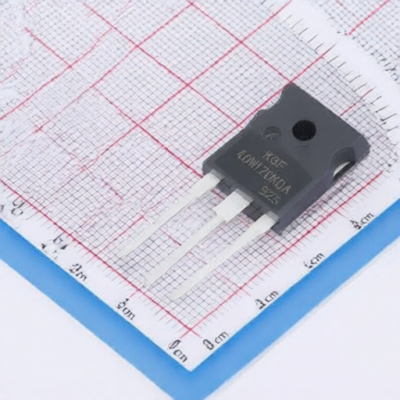

KEC KGF40N120KDA-U/H
Manufacturer:
KEC
Mfr. Part #:
KGF40N120KDA-U/H
Package:
TO-247
Customer #:
Description:
357W 1.2kV TO-247 Single IGBTs RoHS
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
357W
Td(off):
350ns
Td(on):
60ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
135pF
Input Capacitance(Cies):
4.8nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@40mA
Gate Charge(Qg):
230nC@15V
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
195pF
Reverse Recovery Time(trr):
360ns
Switching Energy(Eoff):
1.9mJ
Turn-On Energy (Eon):
3.5mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KEC
388 Products
Established in 1969, KEC corporation is a global leading semiconductor expert company with the main product of non-memory semiconductor (Transistor, Diode, IC, MOS, etc). The management philosophy of KEC is creating electronic technologies. KEC strives to providing the finest products as well as help improve the quality of life for all.
