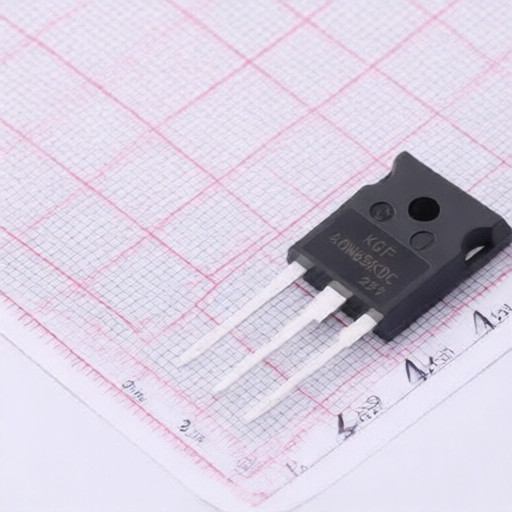

KEC KGF40N65KDC-U/P
Manufacturer:
KEC
Mfr. Part #:
KGF40N65KDC-U/P
Package:
TO-247
Customer #:
Key Attributes:
Field Stop Trench IGBTs
Description:
208W 650V FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
KEC KGF40N65KDC-U/P
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
208W
Td(off):
115ns
Td(on):
60ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
30pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@4mA
Gate Charge(Qg):
90nC@15V
Reverse Recovery Time(trr):
97ns
Switching Energy(Eoff):
720uJ
Turn-On Energy (Eon):
1.24mJ
Input Capacitance(Cies):
2.3nF
Pulsed Current- Forward(Ifm):
80A
Output Capacitance(Coes):
110pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KEC
388 Products
Established in 1969, KEC corporation is a global leading semiconductor expert company with the main product of non-memory semiconductor (Transistor, Diode, IC, MOS, etc). The management philosophy of KEC is creating electronic technologies. KEC strives to providing the finest products as well as help improve the quality of life for all.
