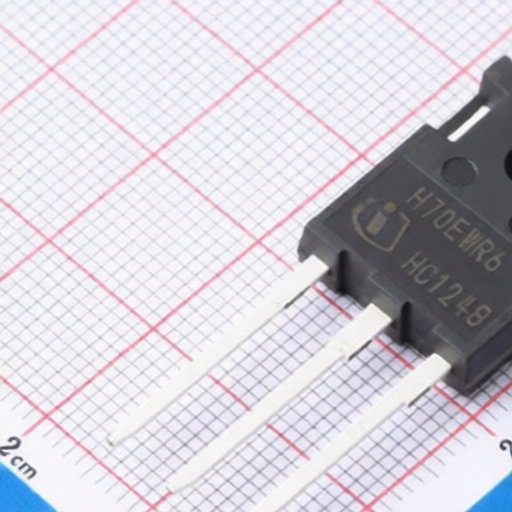

Infineon IKWH70N65WR6
Manufacturer:
Infineon
Mfr. Part #:
IKWH70N65WR6
Package:
TO-247-3
Customer #:
Key Attributes:
TRENCHSTOP 5 WR6 technology in enhanced creepage and clearance package
Description:
290W 650V TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IKWH70N65WR6
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
290W
Td(off):
378ns
Td(on):
42ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
22pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.2V@0.7mA
Gate Charge(Qg):
218nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
98ns
Switching Energy(Eoff):
1.07mJ
Turn-On Energy (Eon):
2.2mJ
Input Capacitance(Cies):
5.32nF
Pulsed Current- Forward(Ifm):
70A
Output Capacitance(Coes):
52pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
