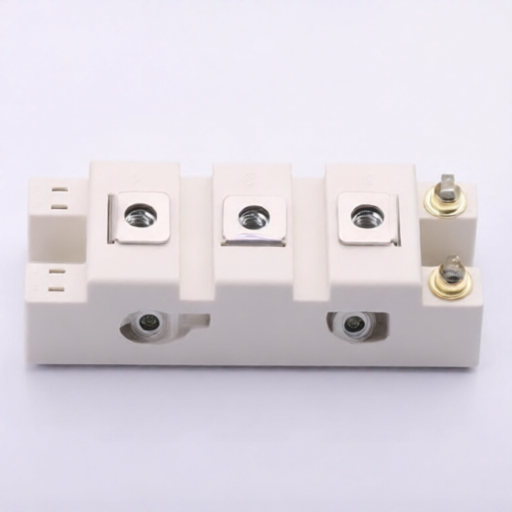

JIAENSEMI GL150HF120F1UR1
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
GL150HF120F1UR1
Package:
-
Customer #:
Description:
1.04kW 1.2kV FS (Field Stop) Single IGBTs RoHS
Datasheet:
JIAENSEMI GL150HF120F1UR1
Products Specifications
Manufacturer:
Package:
-
Td(off):
460ns
Pd - Power Dissipation:
1.04kW
Td(on):
95ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.31nF
Input Capacitance(Cies):
6.4nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@2mA
Operating Temperature:
-40℃~+150℃
Pulsed Current- Forward(Ifm):
300A
Switching Energy(Eoff):
6.3mJ
Turn-On Energy (Eon):
17mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
