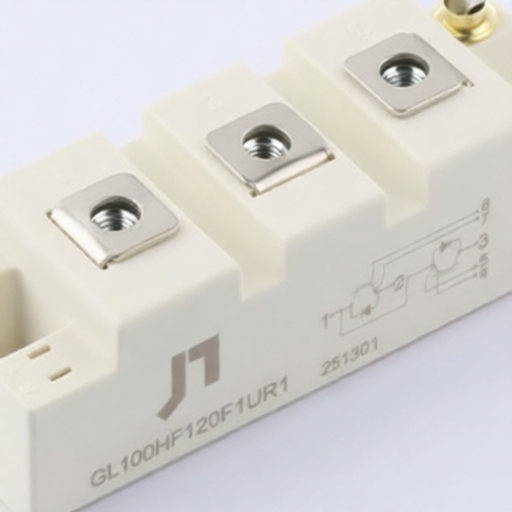

JIAENSEMI GL100HF120F1UR1
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
GL100HF120F1UR1
Package:
-
Customer #:
Description:
565W 1.2kV FS (Field Stop) Single IGBTs RoHS
Datasheet:
JIAENSEMI GL100HF120F1UR1
Products Specifications
Manufacturer:
Package:
-
Pd - Power Dissipation:
565W
Td(off):
350ns
Td(on):
57ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.2nF
Input Capacitance(Cies):
4.38nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Operating Temperature:
-40℃~+150℃
Pulsed Current- Forward(Ifm):
200A
Switching Energy(Eoff):
2.7mJ
Turn-On Energy (Eon):
8.8mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
