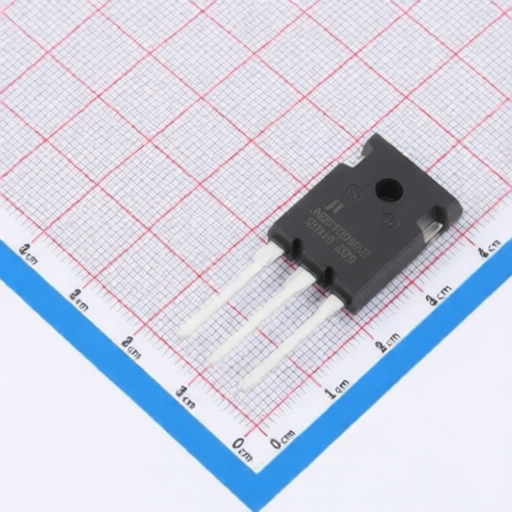

JIAENSEMI JNG15T120HIRU2
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
JNG15T120HIRU2
Package:
TO-247
Customer #:
Description:
175W 1.2kV TO-247 Single IGBTs RoHS
Datasheet:
JIAENSEMI JNG15T120HIRU2
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
131ns
Pd - Power Dissipation:
175W
Td(on):
19ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
11pF
Input Capacitance(Cies):
1.32nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Operating Temperature:
-55℃~+175℃
Pulsed Current- Forward(Ifm):
45A
Output Capacitance(Coes):
57pF
Reverse Recovery Time(trr):
130ns
Switching Energy(Eoff):
900uJ
Turn-On Energy (Eon):
1.1mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
