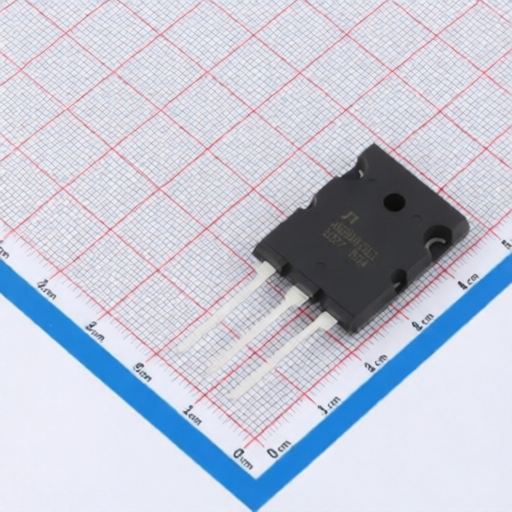

JIAENSEMI JNG50N120LS
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
JNG50N120LS
Package:
TO-264
Customer #:
Description:
500W 1.2kV NPT (Non-Punch Through) TO-264 Single IGBTs RoHS
Datasheet:
JIAENSEMI JNG50N120LS
Products Specifications
Manufacturer:
Package:
TO-264
Td(off):
55ns
Pd - Power Dissipation:
500W
Td(on):
95ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
218pF
IGBT Type:
NPT (Non-Punch Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
340nC@15V
Operating Temperature:
-55℃~+150℃
Reverse Recovery Time(trr):
292ns
Switching Energy(Eoff):
6.58mJ
Turn-On Energy (Eon):
3.16mJ
Input Capacitance(Cies):
360pF
Pulsed Current- Forward(Ifm):
150A
Output Capacitance(Coes):
218pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 24 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
