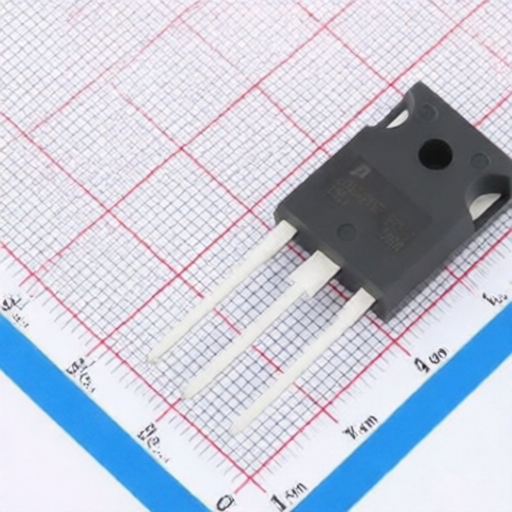

JIAENSEMI JNG60T65HS1
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
JNG60T65HS1
Package:
TO-247
Customer #:
Description:
312W 650V TO-247 Single IGBTs RoHS
Datasheet:
JIAENSEMI JNG60T65HS1
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
312W
Td(off):
159ns
Td(on):
47ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
19pF
Input Capacitance(Cies):
2.662nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@250uA
Gate Charge(Qg):
102nC
Pulsed Current- Forward(Ifm):
180A
Output Capacitance(Coes):
206pF
Reverse Recovery Time(trr):
808ns
Switching Energy(Eoff):
2mJ
Turn-On Energy (Eon):
3mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
