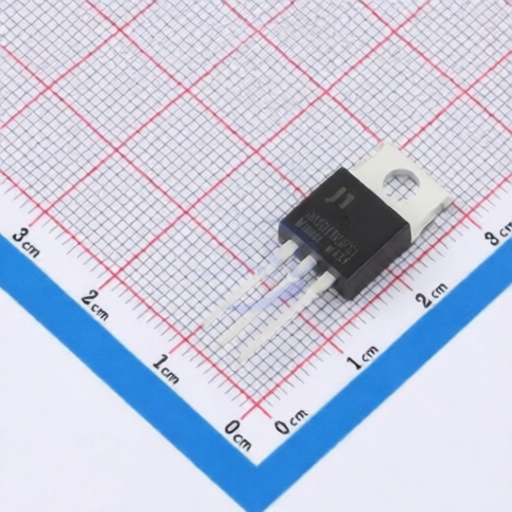

JIAENSEMI JNG20T65PS1
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
JNG20T65PS1
Package:
TO-220
Customer #:
Description:
125W 650V TO-220 Single IGBTs RoHS
Datasheet:
JIAENSEMI JNG20T65PS1
Products Specifications
Manufacturer:
Package:
TO-220
Td(off):
71ns
Pd - Power Dissipation:
125W
Td(on):
17ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
7.5pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@250uA
Gate Charge(Qg):
271nC
Operating Temperature:
-55℃~+150℃
Reverse Recovery Time(trr):
110ns
Switching Energy(Eoff):
410uJ
Turn-On Energy (Eon):
460uJ
Input Capacitance(Cies):
831pF
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
50pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
