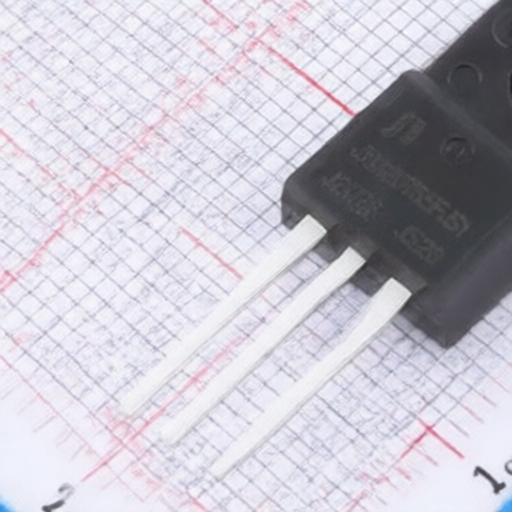

JIAENSEMI JNG20T65FJS1
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
JNG20T65FJS1
Package:
TO-220F
Customer #:
Description:
53W 650V TO-220F Single IGBTs RoHS
Datasheet:
JIAENSEMI JNG20T65FJS1
Products Specifications
Manufacturer:
Package:
TO-220F
Td(off):
120ns
Pd - Power Dissipation:
53W
Td(on):
21ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
13pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.2V@1mA
Gate Charge(Qg):
21nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
62ns
Switching Energy(Eoff):
460uJ
Turn-On Energy (Eon):
370uJ
Input Capacitance(Cies):
1.7nF
Pulsed Current- Forward(Ifm):
80A
Output Capacitance(Coes):
72pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
