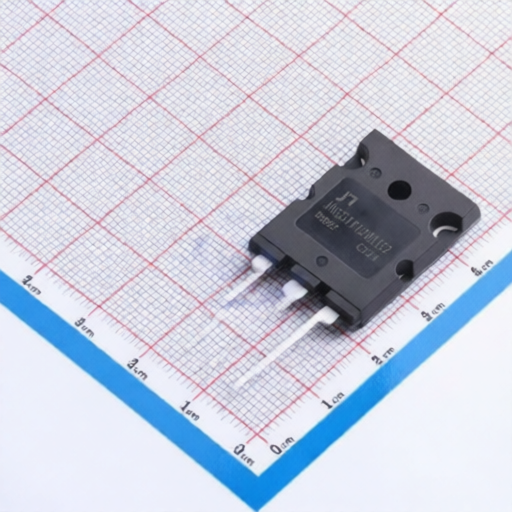

JIAENSEMI JNG50T120LIS2
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
JNG50T120LIS2
Package:
TO264
Customer #:
Description:
329W 1.2kV TO264 Single IGBTs RoHS
Datasheet:
JIAENSEMI JNG50T120LIS2
Products Specifications
Manufacturer:
Package:
TO264
Pd - Power Dissipation:
329W
Td(off):
435ns
Td(on):
94ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
49pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
243nC
Operating Temperature:
-40℃~+150℃
Reverse Recovery Time(trr):
1.02us
Switching Energy(Eoff):
3.6mJ
Turn-On Energy (Eon):
4.3mJ
Input Capacitance(Cies):
7.33nF
Pulsed Current- Forward(Ifm):
150A
Output Capacitance(Coes):
219pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
