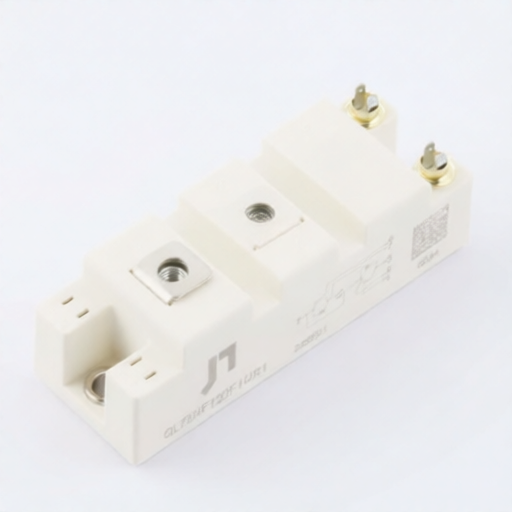

JIAENSEMI GL75HF120F1UR1
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
GL75HF120F1UR1
Package:
-
Customer #:
Description:
445W 1.2kV FS (Field Stop) Single IGBTs RoHS
Datasheet:
JIAENSEMI GL75HF120F1UR1
Products Specifications
Manufacturer:
Package:
-
Td(off):
160ns
Pd - Power Dissipation:
445W
Td(on):
38ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.15nF
Input Capacitance(Cies):
3.2nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Operating Temperature:
-40℃~+150℃
Pulsed Current- Forward(Ifm):
150A
Switching Energy(Eoff):
2.4mJ
Turn-On Energy (Eon):
5.7mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 18 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
