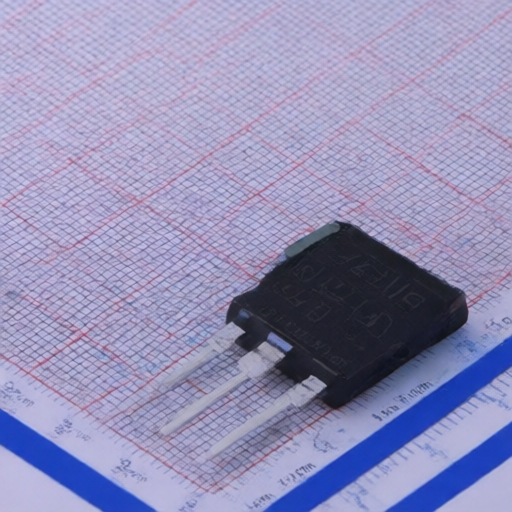

Infineon IKW75N65EL5
Manufacturer:
Infineon
Mfr. Part #:
IKW75N65EL5
Package:
TO-247-3
Customer #:
Key Attributes:
Low VcE(sat) IGBT in TRENCHSTOP 5 technology copacked with RAPID 1 fast and soft antiparallel diode
Description:
536W 650V TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IKW75N65EL5
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
536W
Td(off):
275ns
Td(on):
40ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
42pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.2V@1mA
Operating Temperature:
-40℃~+175℃
Gate Charge(Qg):
436nC@15V
Reverse Recovery Time(trr):
114ns
Switching Energy(Eoff):
3.2mJ
Turn-On Energy (Eon):
1.61mJ
Input Capacitance(Cies):
12.1nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
150pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Infineon
9502 Products
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.
Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
