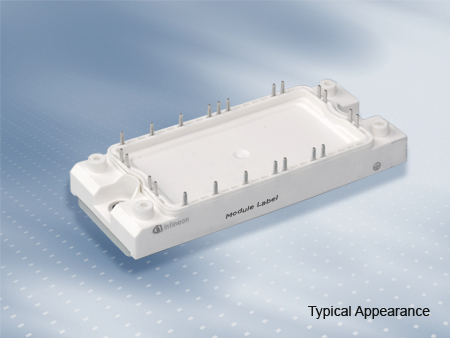

Infineon FP75R12N2T7
Manufacturer:
Infineon
Mfr. Part #:
FP75R12N2T7
Package:
Through Hole,107.5x45mm
Customer #:
Description:
IGBT 1.2kV 75A Through Hole,107.5x45mm
Datasheet:
Infineon FP75R12N2T7
Products Specifications
Manufacturer:
Package:
Through Hole,107.5x45mm
Pd - Power Dissipation:
-
Td(off):
320ns
Td(on):
146ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
-
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.15V@1.28mA
Gate Charge(Qg):
1.25uC@600V,15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
-
Switching Energy(Eoff):
4.95mJ
Turn-On Energy (Eon):
8.05mJ
Input Capacitance(Cies):
15.1nF@25V
Pulsed Current- Forward(Ifm):
-
Output Capacitance(Coes):
-
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
