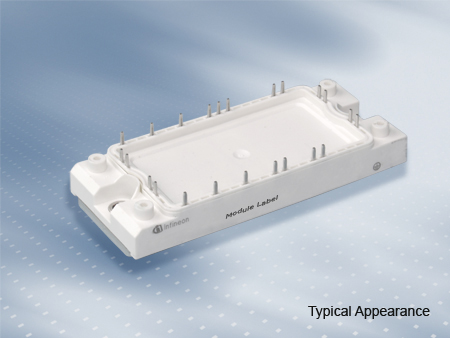

Infineon FP100R12N2T7
Manufacturer:
Infineon
Mfr. Part #:
FP100R12N2T7
Package:
Through Hole,107.5x45mm
Customer #:
Description:
IGBT 1.2kV 100A Through Hole,107.5x45mm
Datasheet:
Infineon FP100R12N2T7
Products Specifications
Manufacturer:
Package:
Through Hole,107.5x45mm
Td(off):
324ns
Td(on):
171ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.076nF
Input Capacitance(Cies):
21.7nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.15V@2.5mA
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
200A
Switching Energy(Eoff):
6.42mJ
Turn-On Energy (Eon):
10.4mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
