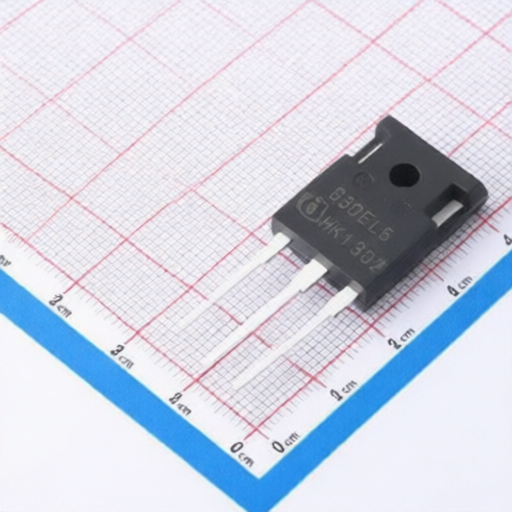

Infineon IGW30N65L5
Manufacturer:
Infineon
Mfr. Part #:
IGW30N65L5
Package:
TO-247-3
Customer #:
Key Attributes:
Low VcE(sat) IGBT in TRENCHSTOP 5 technology, 650V IGBT Low VcE(sat) series fifth generation
Description:
227W 650V TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IGW30N65L5
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
308ns
Pd - Power Dissipation:
227W
Td(on):
33ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
18pF
Input Capacitance(Cies):
4.9nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.2V@0.4mA
Operating Temperature:
-40℃~+175℃
Gate Charge(Qg):
168nC@15V
Output Capacitance(Coes):
42pF
Switching Energy(Eoff):
1.35mJ
Turn-On Energy (Eon):
470uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
