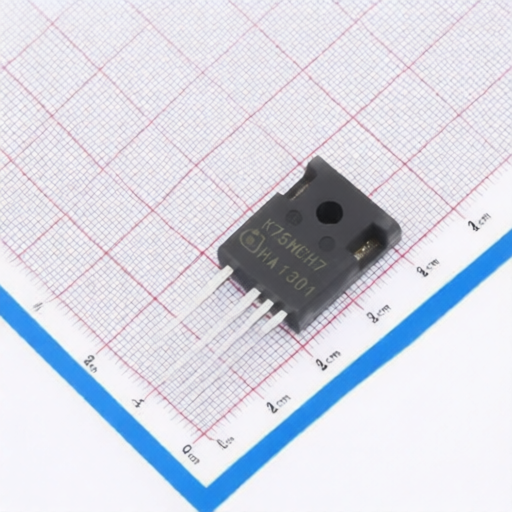

Infineon IKZA75N120CH7XKSA1
Manufacturer:
Infineon
Mfr. Part #:
IKZA75N120CH7XKSA1
Package:
TO-247-4
Customer #:
Key Attributes:
IGBT 1.2kV 109A TO-247-4
Description:
IGBT 1.2kV 109A 549W Through Hole TO-247-4
Datasheet:
Infineon IKZA75N120CH7XKSA1
Products Specifications
Manufacturer:
Package:
TO-247-4
Td(off):
38ns
Pd - Power Dissipation:
549W
Td(on):
15ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
193nF@25V
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.7V@1.2mA
Gate Charge(Qg):
550nC@75A,15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
95ns
Switching Energy(Eoff):
1.76mJ
Turn-On Energy (Eon):
2.01mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
