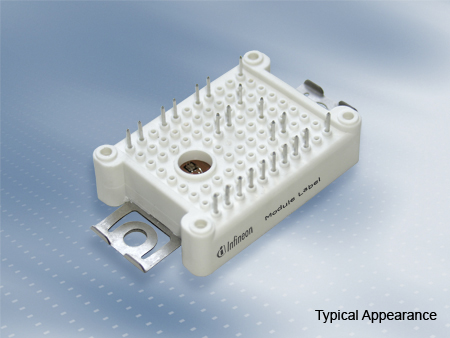

Infineon FP10R12W1T4
Manufacturer:
Infineon
Mfr. Part #:
FP10R12W1T4
Package:
Through Hole,62.8x33.8mm
Customer #:
Description:
105W 1.2kV Through Hole,62.8x33.8mm Single IGBTs RoHS
Datasheet:
Infineon FP10R12W1T4
Products Specifications
Manufacturer:
Package:
Through Hole,62.8x33.8mm
Td(off):
180ns
Pd - Power Dissipation:
105W
Td(on):
45ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.024nF
Input Capacitance(Cies):
600pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.2V@0.3mA
Operating Temperature:
-40℃~+150℃
Pulsed Current- Forward(Ifm):
300A
Switching Energy(Eoff):
550uJ
Turn-On Energy (Eon):
900uJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
