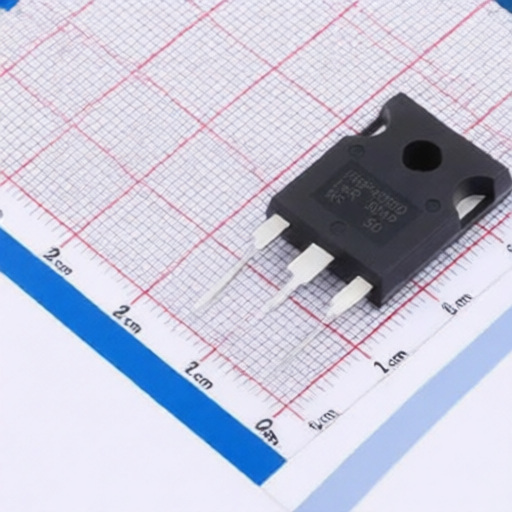

Infineon IRGP4066DPBF
Manufacturer:
Infineon
Mfr. Part #:
IRGP4066DPBF
Package:
TO-247AC
Customer #:
Key Attributes:
Insulated Gate Bipolar Transistor with Ultrafast Soft Recovery Diode
Description:
454W 600V TO-247AC Single IGBTs RoHS
Datasheet:
Infineon IRGP4066DPBF
Products Specifications
Manufacturer:
Package:
TO-247AC
Td(off):
200ns
Pd - Power Dissipation:
454W
Td(on):
150ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
130pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@-
Operating Temperature:
-55℃~+175℃
Gate Charge(Qg):
150nC@15V
Reverse Recovery Time(trr):
155ns
Switching Energy(Eoff):
2.155mJ
Turn-On Energy (Eon):
2.465mJ
Input Capacitance(Cies):
4.44nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
2420pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
