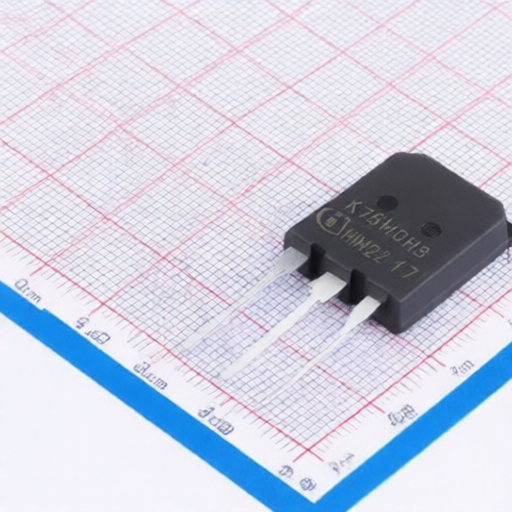

Infineon IKQ75N120CH3
Manufacturer:
Infineon
Mfr. Part #:
IKQ75N120CH3
Package:
TO-247-3
Customer #:
Description:
IGBT 1.2kV 150A 938W Through Hole TO-247-3
Datasheet:
Infineon IKQ75N120CH3
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
282ns
Pd - Power Dissipation:
938W
Td(on):
34ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
4.856nF@25V
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@2.6mA
Gate Charge(Qg):
370nC@15V
Reverse Recovery Time(trr):
370ns
Switching Energy(Eoff):
2.8mJ
Turn-On Energy (Eon):
6.4mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Infineon
9502 Products
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.
Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
