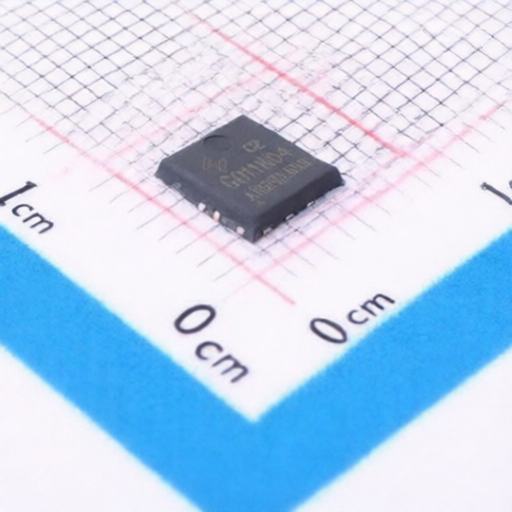

HUAYI HYG011N04LS1C2
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG011N04LS1C2
Package:
DFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 40V 165A DFN5x6-8
Description:
N-Channel 40V 165A 75W Surface Mount DFN5x6-8
Datasheet:
HUAYI HYG011N04LS1C2
Products Specifications
Manufacturer:
Package:
DFN5x6-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
165A
Operating Temperature -:
-55℃~+175℃
RDS(on):
1.9mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
58pF
Number:
1 N-channel
Output Capacitance(Coss):
1.278nF
Input Capacitance(Ciss):
5.876nF
Pd - Power Dissipation:
75W
Gate Charge(Qg):
89nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
