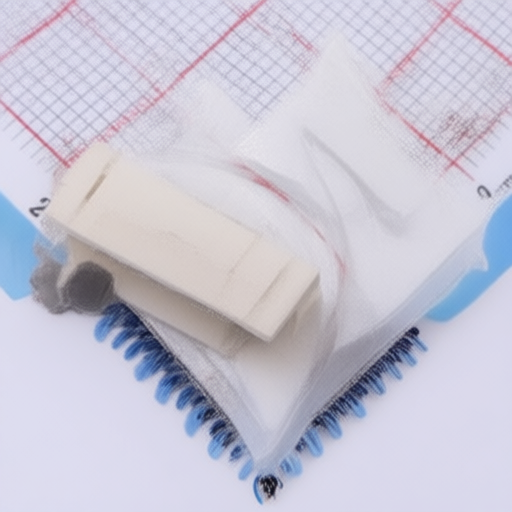

HDGC HDGC2001WR-S-7P
Manufacturer:
HDGC
Mfr. Part #:
HDGC2001WR-S-7P
Package:
SMD,P=2mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 7 position 2mm Pitch 5A Surface Mount, Right Angle
Datasheet:
HDGC HDGC2001WR-S-7P
Products Specifications
Manufacturer:
Package:
SMD,P=2mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
7.6mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x7P
Reference Series:
PH
Contact Material:
Brass;LCP
Pitch:
2mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
7
Number of Rows:
1
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
5.6mm
Mounting Type:
Surface Mount, Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
