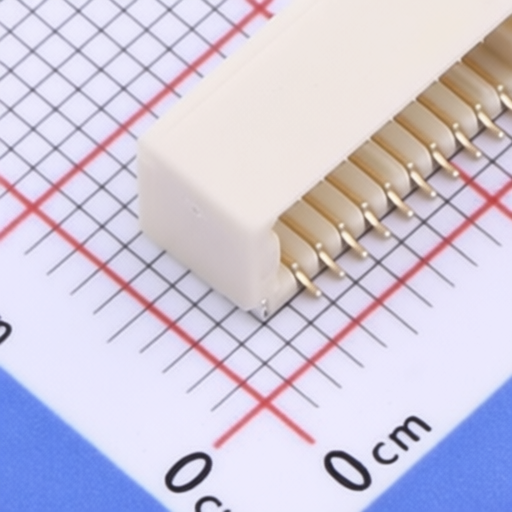

HDGC HDGC1002WR-S-2X10P
Manufacturer:
HDGC
Mfr. Part #:
HDGC1002WR-S-2X10P
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 20 position 1mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
HDGC HDGC1002WR-S-2X10P
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5.4mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x10P
Reference Series:
SHD
Contact Material:
PA6T
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
10
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
13.1mm
Z-Height of the Board:
5.1mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-25℃~+85℃
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
