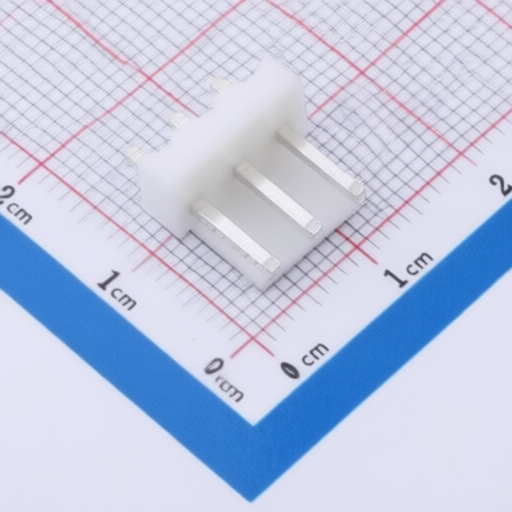

HDGC HDGC3963WV-3P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC3963WV-3P
Package:
Through Hole,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH 3POS 3.96mm
Description:
Connector Header 3 position 3.96mm Pitch 7.5A Through Hole
Datasheet:
HDGC HDGC3963WV-3P
Products Specifications
Manufacturer:
Package:
Through Hole,P=3.96mm
Y-Width of Bottom Edge on Board:
8.4mm
Pins Structure:
1x3P
Reference Series:
VH
Pitch:
3.96mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
11.88mm
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
9.4mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
