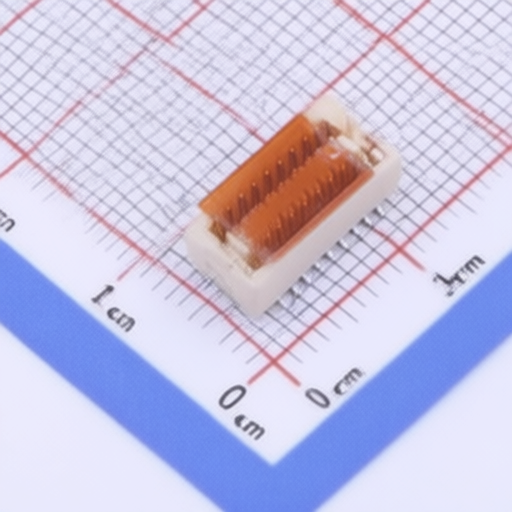

HDGC HDGC1006WV-S-2X9P
Manufacturer:
HDGC
Mfr. Part #:
HDGC1006WV-S-2X9P
Package:
SMD,P=1mm
Customer #:
Description:
Connector Header 18 position 1mm Pitch 1A Surface Mount,Vertical
Datasheet:
HDGC HDGC1006WV-S-2X9P
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
6.6mm
Reference Series:
SHLD
Pins Structure:
2x9P
Contact Plating:
-
Contact Material:
Copper alloy;PA9T
Operating Temperature:
-
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
1mm
Voltage Rating (Max):
36V
Number of PINs Per Row:
9
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
-
Row Spacing:
-
Z-Height of the Board:
4.2mm
Mounting Type:
Surface Mount,Vertical
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
