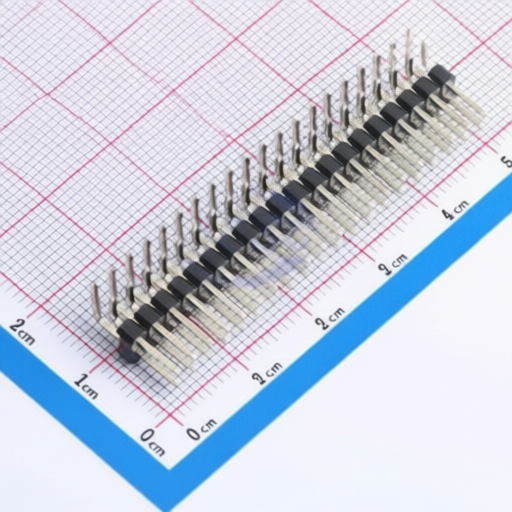

HDGC HDGCPH254-PW02-20
Manufacturer:
HDGC
Mfr. Part #:
HDGCPH254-PW02-20
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Description:
Pin Header 40 Position 2.54mm Pitch Dual Row Through Hole, Right Angle
Datasheet:
HDGC HDGCPH254-PW02-20
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Pins Structure:
2x20P
Number of Pins:
40P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pitch:
2.54mm
Insulation Height:
2.54mm
Length of Mating Pin:
6mm
Current Rating-Signal:
3A
Number of Rows:
2
Row Spacing:
2.54mm
Mounting Type:
Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
