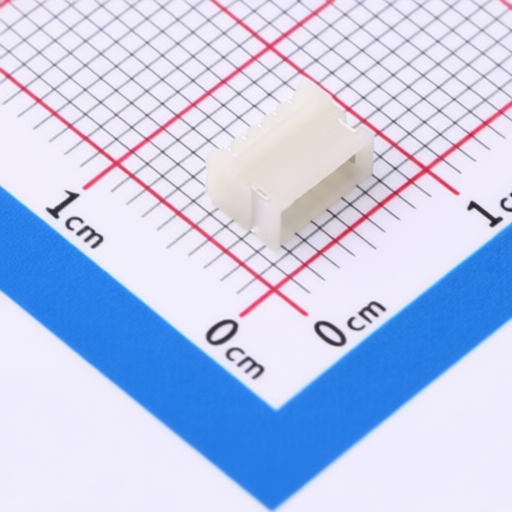

HDGC HDGC1002WRF-S-5P-2
Manufacturer:
HDGC
Mfr. Part #:
HDGC1002WRF-S-5P-2
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 5 position 1mm Pitch 1A Surface Mount, Right Angle
Datasheet:
HDGC HDGC1002WRF-S-5P-2
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.3mm
Pins Structure:
1x5P
Contact Plating:
Tin
Contact Material:
Brass;PA6T
Pitch:
1mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
6.5mm
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
3mm
Mounting Type:
Surface Mount, Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HDGC
1770 Products
Shenzhen Huade Co-create Technology Co., Ltd
(hereinafter referred to as "HDGC") was founded in 2008 in Shenzhen, Guangdong. It is a professional electronic connector manufacturer integrating development, production and sales. The main product categories include wafer, housing, terminal, LED light bar connectors, IDC connectors, pin and female header connectors, which are widely used in automotive electronics, smart home, industrial control and other fields. HDGC adheres to technological innovation as the leading factor, continuously launches high-tech and high-quality products, and has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, UL (E350787) safety certification, and complies with environmental protection requirements such as RoHS, REACH, halogen-free, etc. HDGC is committed to becoming a reliable connector solution provider.
