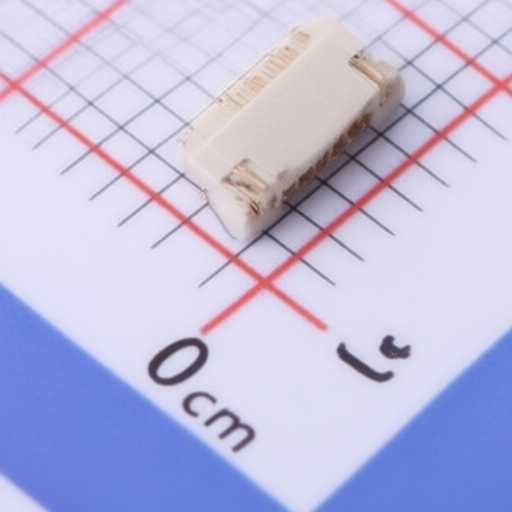

HDGC HDGC0802WR-S-4P
Manufacturer:
HDGC
Mfr. Part #:
HDGC0802WR-S-4P
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 4 position 0.8mm Pitch 0.5A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
HDGC HDGC0802WR-S-4P
Products Specifications
Manufacturer:
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
2.7mm
Reference Series:
-
Pins Structure:
1x4P
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
Auxiliary Solder Pin
Pitch:
0.8mm
Voltage Rating (Max):
30V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
5.38mm
Row Spacing:
-
Z-Height of the Board:
1.7mm
Mounting Type:
Surface Mount, Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HDGC
1770 Products
Shenzhen Huade Co-create Technology Co., Ltd
(hereinafter referred to as "HDGC") was founded in 2008 in Shenzhen, Guangdong. It is a professional electronic connector manufacturer integrating development, production and sales. The main product categories include wafer, housing, terminal, LED light bar connectors, IDC connectors, pin and female header connectors, which are widely used in automotive electronics, smart home, industrial control and other fields. HDGC adheres to technological innovation as the leading factor, continuously launches high-tech and high-quality products, and has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, UL (E350787) safety certification, and complies with environmental protection requirements such as RoHS, REACH, halogen-free, etc. HDGC is committed to becoming a reliable connector solution provider.
