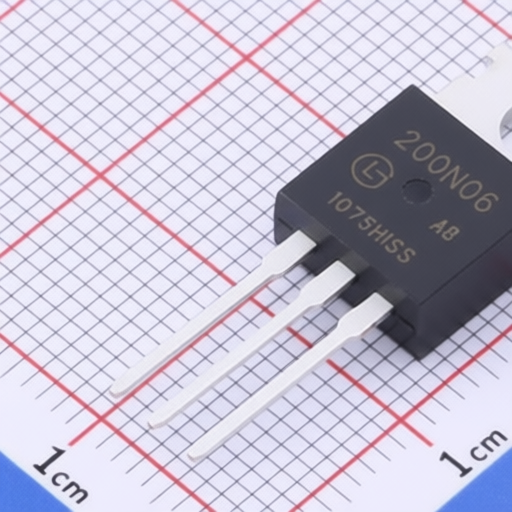

GL GL200N06A8
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL200N06A8
Package:
TO-220AB-3
Customer #:
Key Attributes:
N-Channel, Current:208A, Voltage:60V
Description:
60V 208A 3mΩ@10V 4V@250uA 1 N-channel 333W TO-220AB-3 Single FETs, MOSFETs RoHS
Datasheet:
GL GL200N06A8
Products Specifications
Manufacturer:
Package:
TO-220AB-3
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
208A
Operating Temperature -:
-55℃~+175℃
RDS(on):
3mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
330pF
Number:
1 N-channel
Output Capacitance(Coss):
850pF
Pd - Power Dissipation:
333W
Input Capacitance(Ciss):
9.1nF
Gate Charge(Qg):
120nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
