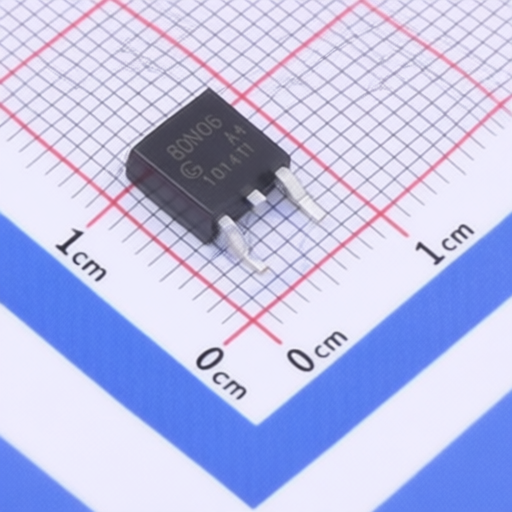

GL GL80N06A4
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL80N06A4
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 60V 80A TO-252
Description:
N-Channel 60V 80A 110W Surface Mount TO-252
Datasheet:
GL GL80N06A4
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
80A
Operating Temperature -:
-55℃~+175℃
RDS(on):
8.5mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
210pF
Number:
1 N-channel
Output Capacitance(Coss):
290pF
Pd - Power Dissipation:
110W
Input Capacitance(Ciss):
4nF
Gate Charge(Qg):
90nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
