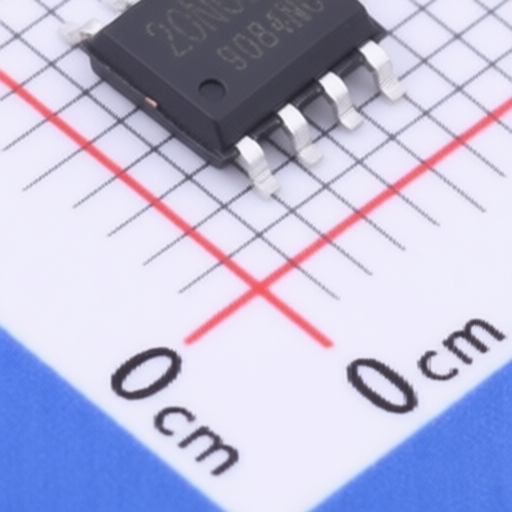

GL GL20N02-8
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL20N02-8
Package:
SOP-8
Customer #:
Key Attributes:
N-Channel, Current: 20A, Voltage: 20V
Description:
20V 20A 5mΩ@10V 1.2V@250uA 3W SOP-8 Single FETs, MOSFETs RoHS
Datasheet:
GL GL20N02-8
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
20A
RDS(on):
5mΩ@10V
Operating Temperature -:
-
Gate Threshold Voltage (Vgs(th)):
1.2V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
210pF
Output Capacitance(Coss):
500pF
Pd - Power Dissipation:
3W
Input Capacitance(Ciss):
2nF
Gate Charge(Qg):
28nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
GL
38 Products
Guanglei Electronic Technology Co., Ltd. is a professional power semiconductor product and solution design company whose products are mainly used in the field of power management. The current target markets of Opto Lei are consumer electronics, household appliances, information technology and high-power energy electronics.
The core competitiveness of the company team is the design, development and marketing of power management products, such as power MOSFETs, IGBTs, Schottky diodes, fast recovery rectifier diodes and integrated circuits. They have been engaged in power semiconductor R&D, operation and sales for more than 17 years. experience.
