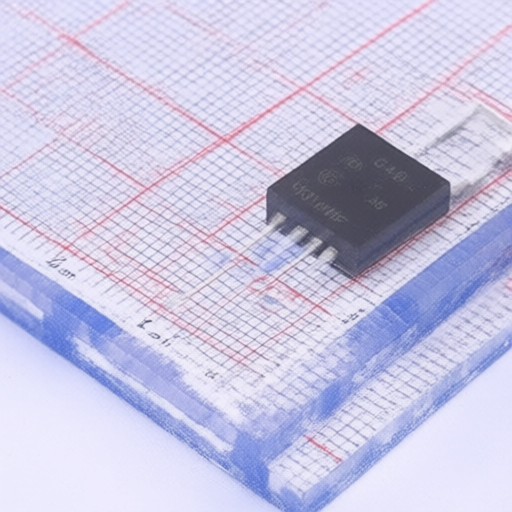

GL GL540A8P
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL540A8P
Package:
TO-220AB-3
Customer #:
Key Attributes:
N-Channel, Current:33A, Voltage:100V
Description:
100V 33A 44mΩ@10V 4V@250uA 1 N-channel 150W TO-220AB-3 Single FETs, MOSFETs RoHS
Datasheet:
GL GL540A8P
Products Specifications
Manufacturer:
Package:
TO-220AB-3
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
33A
Operating Temperature -:
-55℃~+175℃
RDS(on):
44mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
10pF
Number:
1 N-channel
Pd - Power Dissipation:
150W
Input Capacitance(Ciss):
2.7nF
Gate Charge(Qg):
37nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
GL
38 Products
Guanglei Electronic Technology Co., Ltd. is a professional power semiconductor product and solution design company whose products are mainly used in the field of power management. The current target markets of Opto Lei are consumer electronics, household appliances, information technology and high-power energy electronics.
The core competitiveness of the company team is the design, development and marketing of power management products, such as power MOSFETs, IGBTs, Schottky diodes, fast recovery rectifier diodes and integrated circuits. They have been engaged in power semiconductor R&D, operation and sales for more than 17 years. experience.
