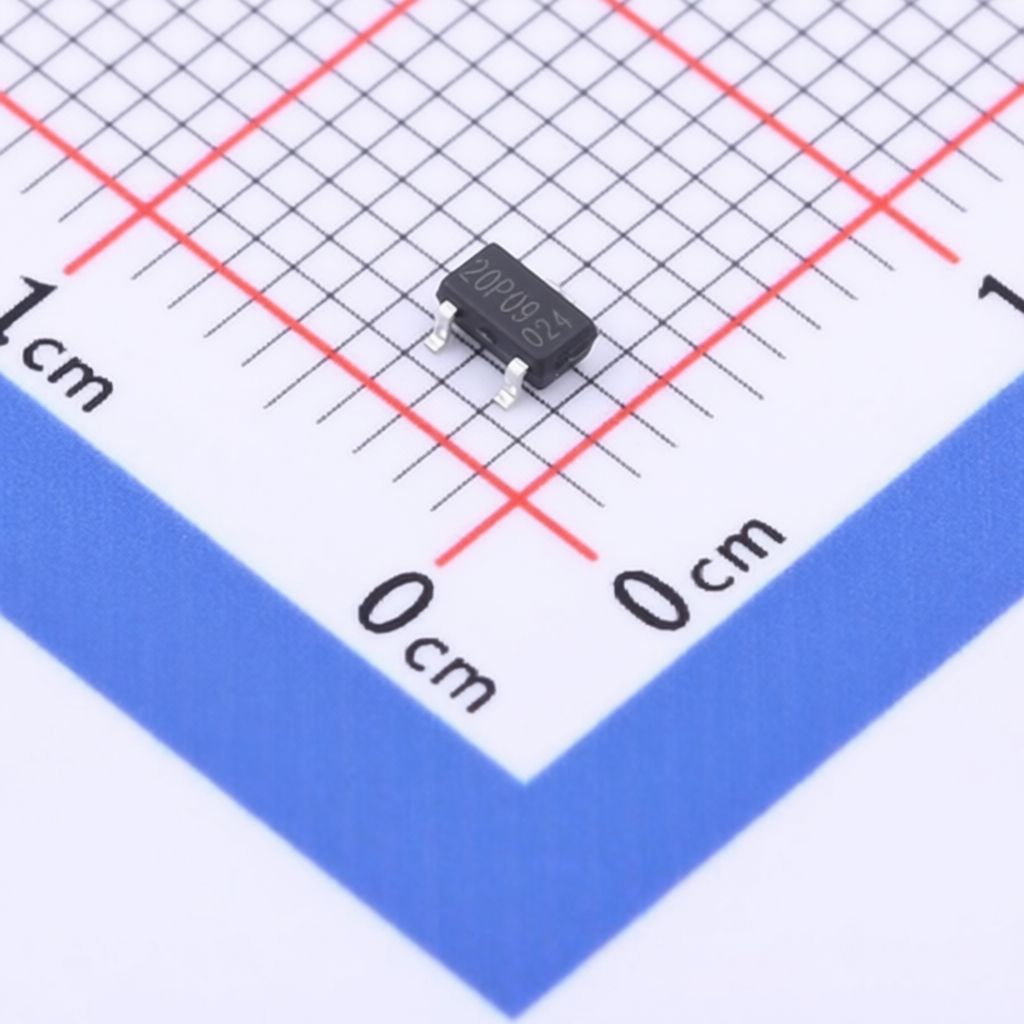

ASDsemi ASDM20P09ZB-R
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM20P09ZB-R
Package:
SOT-23-3
Customer #:
Key Attributes:
MOSFET P-CH 20V 6A SOT-23-3
Description:
P-Channel 20V 6A 1.8W Surface Mount SOT-23-3
Datasheet:
ASDsemi ASDM20P09ZB-R
Products Specifications
Manufacturer:
Package:
SOT-23-3
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
6A
Operating Temperature -:
-55℃~+150℃
RDS(on):
28mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
90pF
Number:
1 P-Channel
Input Capacitance(Ciss):
1.2nF@10V
Pd - Power Dissipation:
1.8W
Gate Charge(Qg):
48nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ASDsemi
90 Products
Xi’an Ascend Semiconductor Co.,Ltd. is one of top local semiconductor product provider, was started in Xi’an Hi-Tech Park. Ascendsemi has sales offices in Shenzhen, Taiwan, and warehouse in HongKong.
Ascendsemi has seven product lines including Operational Amplifier/Audio Amplifier、Power management IC(Charger、LDO、Buck/Boost、Load Switch、LED Driver)、 Interface circuit、Motor driver 、Lithium protection and charging management、Power Devices(MOSFET、Schottky Diode、Transistor)and Car Electronics. There are more than 500 products in Ascendsemi’s catalog now.These products are widely use in powers, computers, televisions, communication equipment, security monitors, automptive, smart wearing, medical electronics , BMS, etc.
