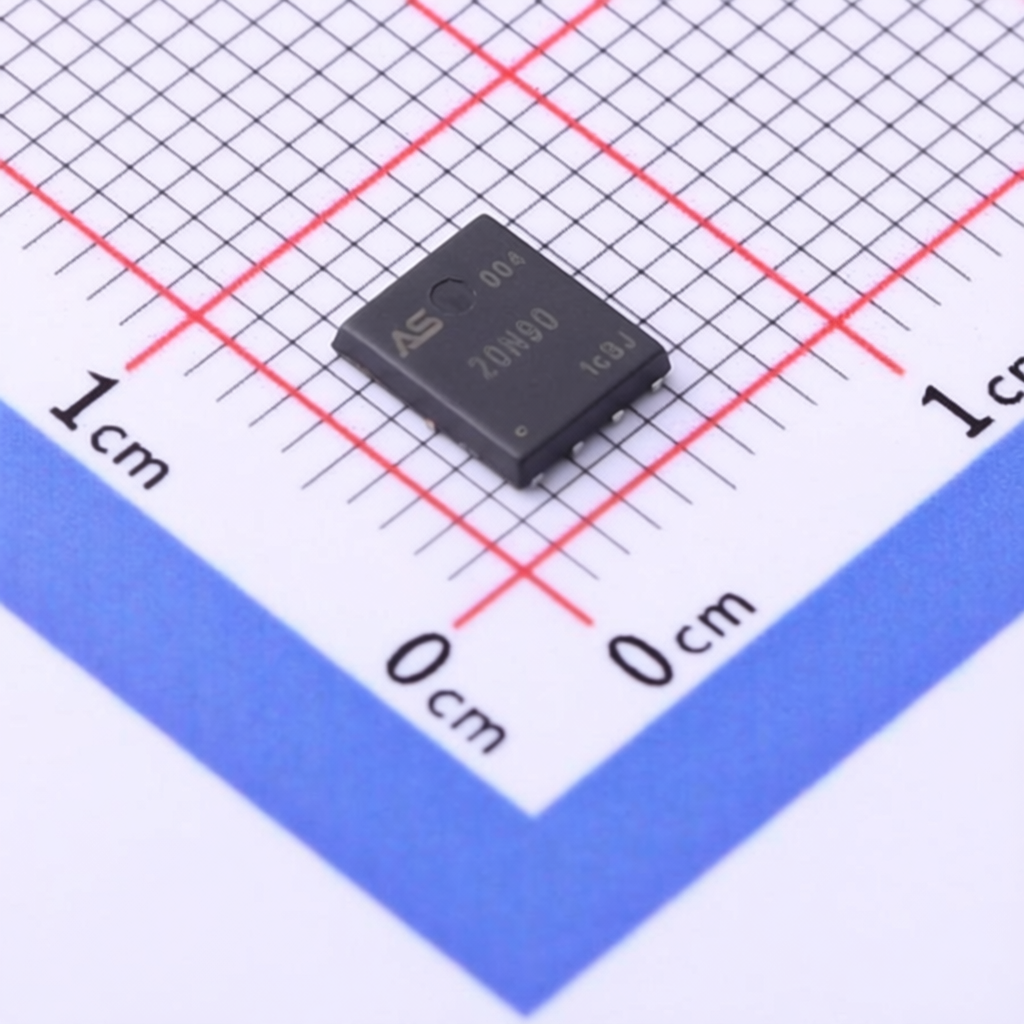

ASDsemi ASDM20N90Q-R
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM20N90Q-R
Package:
PDFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 20V 90A PDFN5x6-8
Description:
N-Channel 20V 90A 40W Surface Mount PDFN5x6-8
Datasheet:
ASDsemi ASDM20N90Q-R
Products Specifications
Manufacturer:
Package:
PDFN5x6-8
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
90A
RDS(on):
2.5mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.1V@250uA
Reverse Transfer Capacitance (Crss@Vds):
365pF@10V
Number:
1 N-channel
Input Capacitance(Ciss):
3.605nF@10V
Pd - Power Dissipation:
40W
Gate Charge(Qg):
36.6nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ASDsemi
90 Products
Xi’an Ascend Semiconductor Co.,Ltd. is one of top local semiconductor product provider, was started in Xi’an Hi-Tech Park. Ascendsemi has sales offices in Shenzhen, Taiwan, and warehouse in HongKong.
Ascendsemi has seven product lines including Operational Amplifier/Audio Amplifier、Power management IC(Charger、LDO、Buck/Boost、Load Switch、LED Driver)、 Interface circuit、Motor driver 、Lithium protection and charging management、Power Devices(MOSFET、Schottky Diode、Transistor)and Car Electronics. There are more than 500 products in Ascendsemi’s catalog now.These products are widely use in powers, computers, televisions, communication equipment, security monitors, automptive, smart wearing, medical electronics , BMS, etc.
