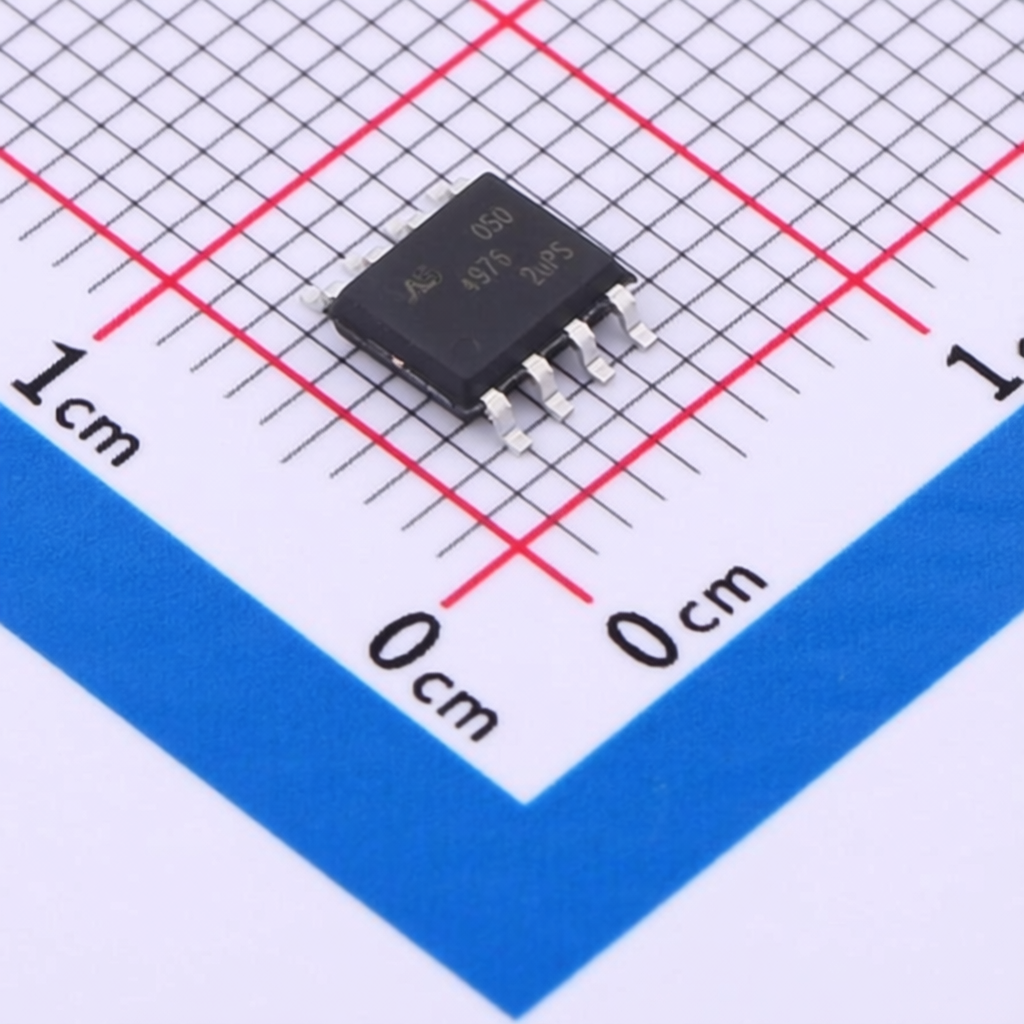

ASDsemi ASDM4976S-R
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM4976S-R
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 60V 5A SOP-8
Description:
N-Channel+P-Channel Array 60V 5A 2W Surface Mount SOP-8
Datasheet:
ASDsemi ASDM4976S-R
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
90mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
75pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
124pF
Input Capacitance(Ciss):
730pF
Pd - Power Dissipation:
2W
Gate Charge(Qg):
14nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
