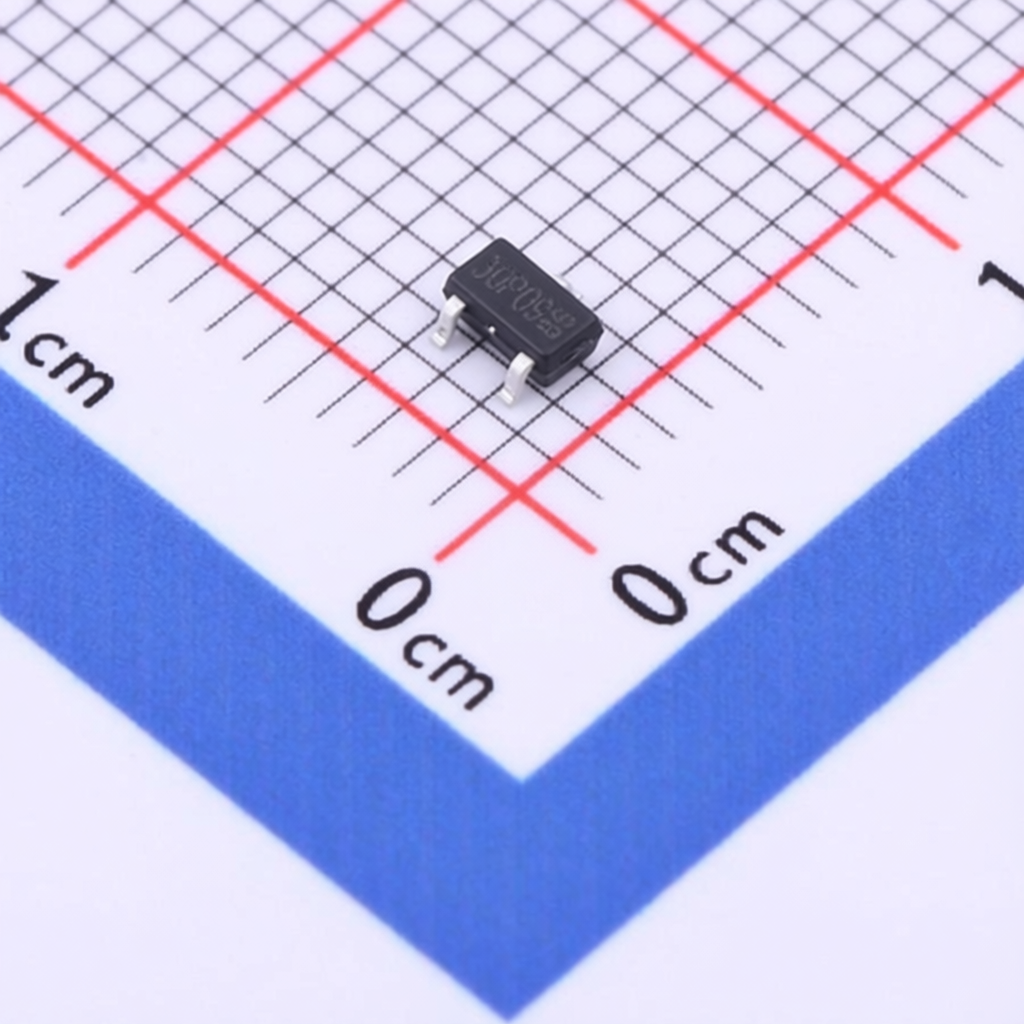

ASDsemi ASDM30P09ZB-R
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM30P09ZB-R
Package:
SOT-23-3
Customer #:
Key Attributes:
MOSFET P-CH 30V 9A SOT-23-3
Description:
P-Channel 30V 6A 1.8W Surface Mount SOT-23-3
Datasheet:
ASDsemi ASDM30P09ZB-R
Products Specifications
Manufacturer:
Package:
SOT-23-3
Configuration:
-
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
9A
Operating Temperature -:
-55℃~+150℃
RDS(on):
20mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
95pF
Number:
-
Output Capacitance(Coss):
240pF
Input Capacitance(Ciss):
1.3nF
Pd - Power Dissipation:
1.8W
Gate Charge(Qg):
50nC@1.0V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
