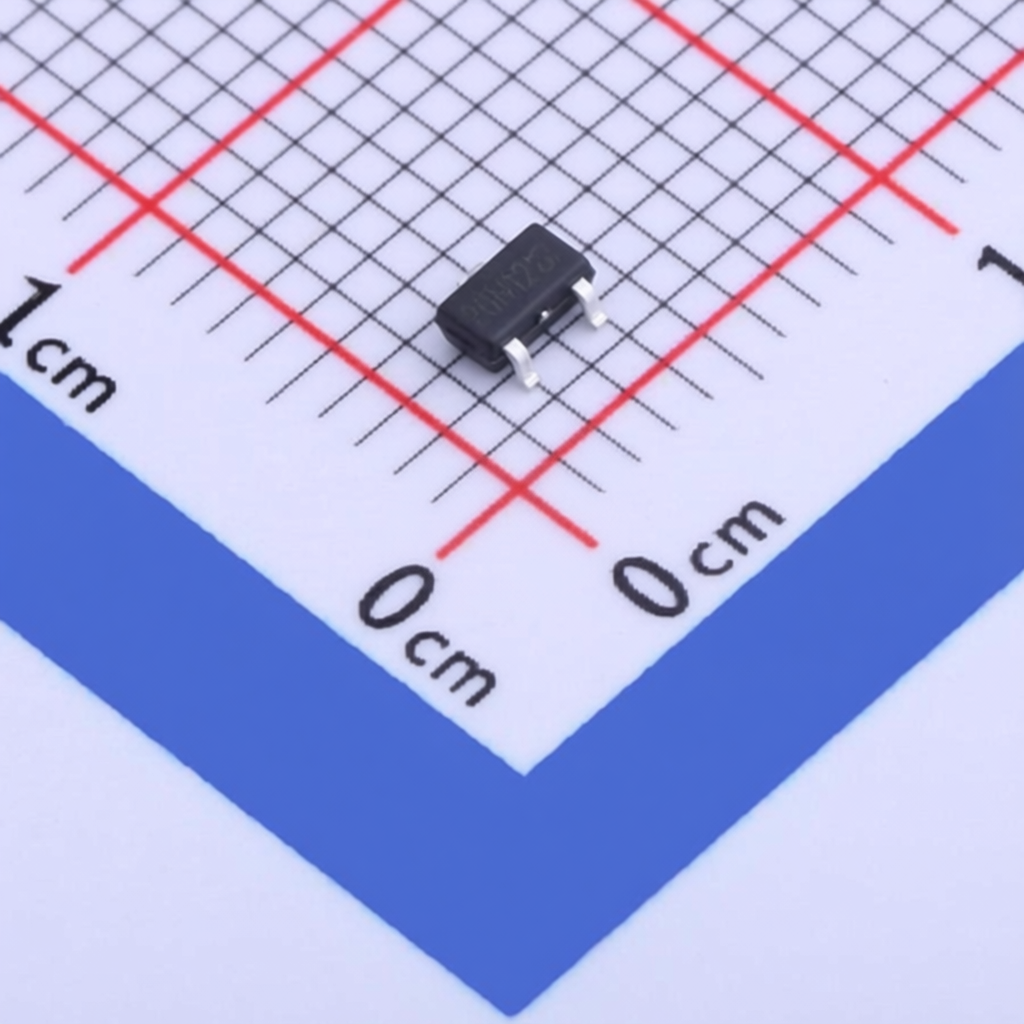

ASDsemi ASDM20N12ZB-R
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM20N12ZB-R
Package:
SOT-23-3
Customer #:
Key Attributes:
MOSFET N-CH 20V 12A SOT-23-3
Description:
N-Channel 20V 12A 1.14W Surface Mount SOT-23-3
Datasheet:
ASDsemi ASDM20N12ZB-R
Products Specifications
Manufacturer:
Package:
SOT-23-3
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
12A
Operating Temperature -:
-40℃~+150℃
RDS(on):
12.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
950mV@250uA
Reverse Transfer Capacitance (Crss@Vds):
150pF
Number:
1 N-channel
Output Capacitance(Coss):
320pF
Input Capacitance(Ciss):
1.035nF
Pd - Power Dissipation:
1.14W
Gate Charge(Qg):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ASDsemi
90 Products
Xi’an Ascend Semiconductor Co.,Ltd. is one of top local semiconductor product provider, was started in Xi’an Hi-Tech Park. Ascendsemi has sales offices in Shenzhen, Taiwan, and warehouse in HongKong.
Ascendsemi has seven product lines including Operational Amplifier/Audio Amplifier、Power management IC(Charger、LDO、Buck/Boost、Load Switch、LED Driver)、 Interface circuit、Motor driver 、Lithium protection and charging management、Power Devices(MOSFET、Schottky Diode、Transistor)and Car Electronics. There are more than 500 products in Ascendsemi’s catalog now.These products are widely use in powers, computers, televisions, communication equipment, security monitors, automptive, smart wearing, medical electronics , BMS, etc.
