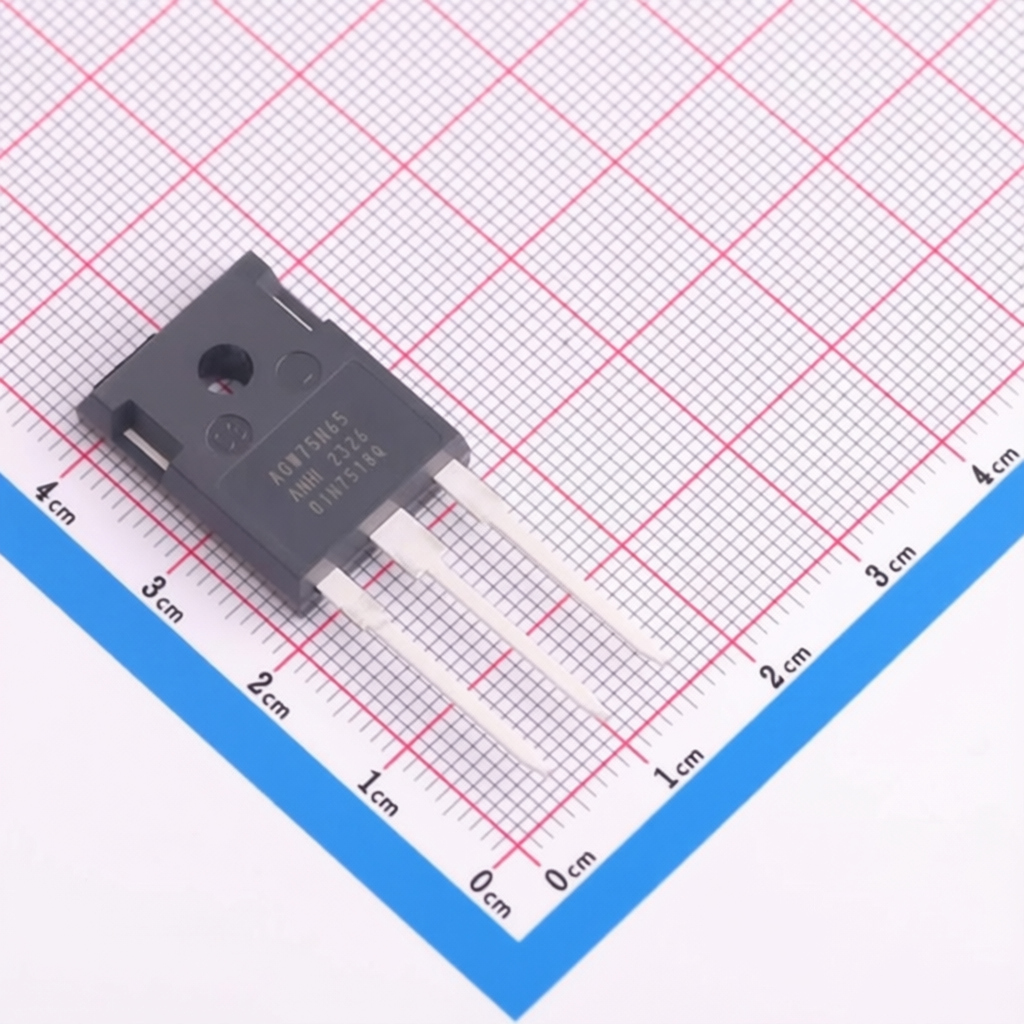

ANHI AGW75N65
Manufacturer:
ANHI
Asian Brands
Mfr. Part #:
AGW75N65
Package:
TO-247
Customer #:
Key Attributes:
IGBT 650V 75A TO-247
Description:
IGBT FS (Field Stop) 650V 75A 469W Through Hole TO-247
Datasheet:
ANHI AGW75N65
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
469W
Td(off):
211ns
Td(on):
71ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Input Capacitance(Cies):
3.91nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.6V
Gate Charge(Qg):
142nC
Operating Temperature:
-
Reverse Recovery Time(trr):
323ns
Switching Energy(Eoff):
2.57mJ
Turn-On Energy (Eon):
3.08mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ANHI
99 Products
ANHI, established in 2019 with a 180 million RMB investment from the Jinan municipal government, focuses on the design, manufacturing, process development, sales, and technical services of power device products and modules. The main products include MOSFETs, super junction MOSFETs, IGBTs, and SiC MOSFETs.
