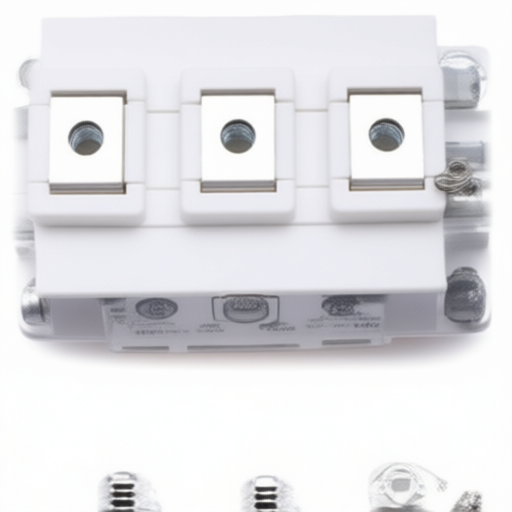

Bestirpower BS600HF120B2SDX
Manufacturer:
Bestirpower
Asian Brands
Mfr. Part #:
BS600HF120B2SDX
Package:
Screw Terminals
Customer #:
Key Attributes:
IGBT 1.2kV 800A Screw Terminals
Description:
IGBT IGBT Module 1.2kV 800A 2142W Screw Terminals
Datasheet:
Bestirpower BS600HF120B2SDX
Products Specifications
Manufacturer:
Package:
Screw Terminals
Td(off):
410ns
Pd - Power Dissipation:
2.142kW
Td(on):
120ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
62.5nF@25V
IGBT Type:
IGBT Module
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.8V@8mA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
3750nC@600A
Switching Energy(Eoff):
58.5mJ
Turn-On Energy (Eon):
17mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
