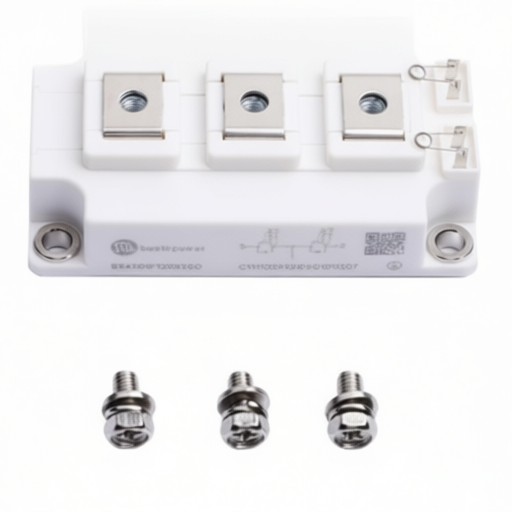

Bestirpower BS450HF120B2SDX
Manufacturer:
Bestirpower
Asian Brands
Mfr. Part #:
BS450HF120B2SDX
Package:
Screw Terminals
Customer #:
Key Attributes:
1200V 450A IGBT Half Bridge Module
Description:
2.307kW 1.2kV IGBT Module Screw Terminals Single IGBTs RoHS
Datasheet:
Bestirpower BS450HF120B2SDX
Products Specifications
Manufacturer:
Package:
Screw Terminals
Td(off):
410ns
Pd - Power Dissipation:
2.307kW
Td(on):
120ps
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
75nF@25V
IGBT Type:
IGBT Module
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@8mA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
3800nC@15V
Switching Energy(Eoff):
41.5mJ
Turn-On Energy (Eon):
10.9mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
