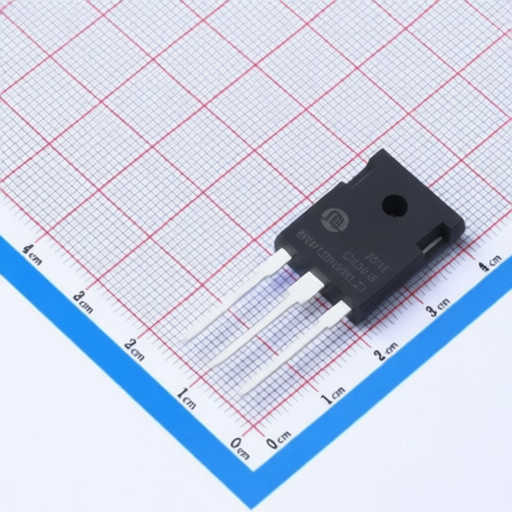

Bestirpower BKW120N040LZ1
Manufacturer:
Bestirpower
Asian Brands
Mfr. Part #:
BKW120N040LZ1
Package:
TO-247-3L
Customer #:
Key Attributes:
IGBT 1.2kV 80A TO-247-3L
Description:
IGBT FS (Field Stop) 1.2kV 80A 328W Through Hole TO-247-3L
Datasheet:
Bestirpower BKW120N040LZ1
Products Specifications
Manufacturer:
Package:
TO-247-3L
Pd - Power Dissipation:
328W
Td(off):
138.2ns
Td(on):
24.65ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
5.353nF@25V
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Operating Temperature:
-40℃~+150℃@(Tj)
Gate Charge(Qg):
146nC@40A,15V
Reverse Recovery Time(trr):
334ns
Switching Energy(Eoff):
2.75mJ
Turn-On Energy (Eon):
2.4mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
