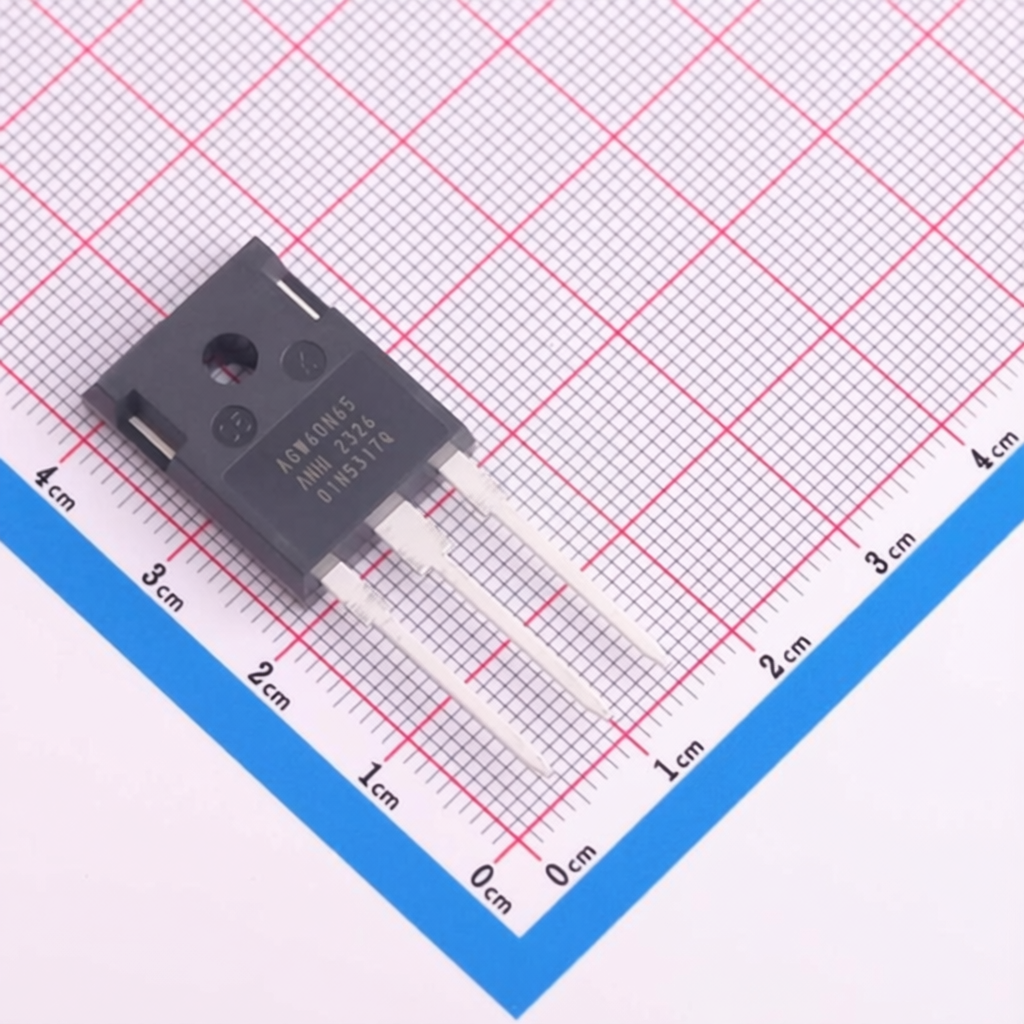

ANHI AGW60N65
Manufacturer:
ANHI
Asian Brands
Mfr. Part #:
AGW60N65
Package:
TO-247
Customer #:
Key Attributes:
IGBT 650V 60A TO-247
Description:
IGBT FS (Field Stop) 650V 60A 375W Through Hole TO-247
Datasheet:
ANHI AGW60N65
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
540ns
Pd - Power Dissipation:
375W
Td(on):
125ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Input Capacitance(Cies):
6.92nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.45V
Operating Temperature:
-
Gate Charge(Qg):
254nC
Reverse Recovery Time(trr):
121ns
Switching Energy(Eoff):
2.13mJ
Turn-On Energy (Eon):
2.38mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ANHI
99 Products
ANHI, established in 2019 with a 180 million RMB investment from the Jinan municipal government, focuses on the design, manufacturing, process development, sales, and technical services of power device products and modules. The main products include MOSFETs, super junction MOSFETs, IGBTs, and SiC MOSFETs.
